Replacement Parts For A0102-CA

More Views

3 Steps to ordering parts

  • 1. Confirm you have chosen the correct model number.
  • 2. Browse the available parts below.
  • 3. Choose quantity, finish if needed and add to cart.

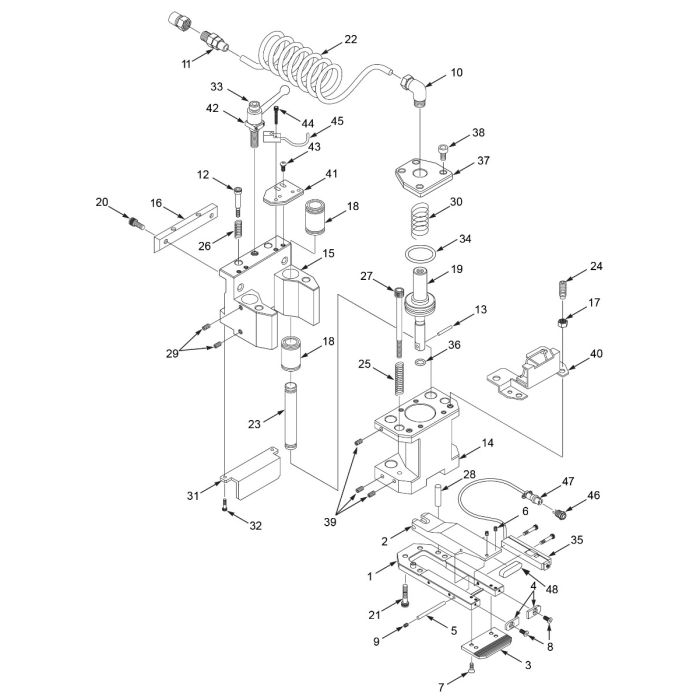

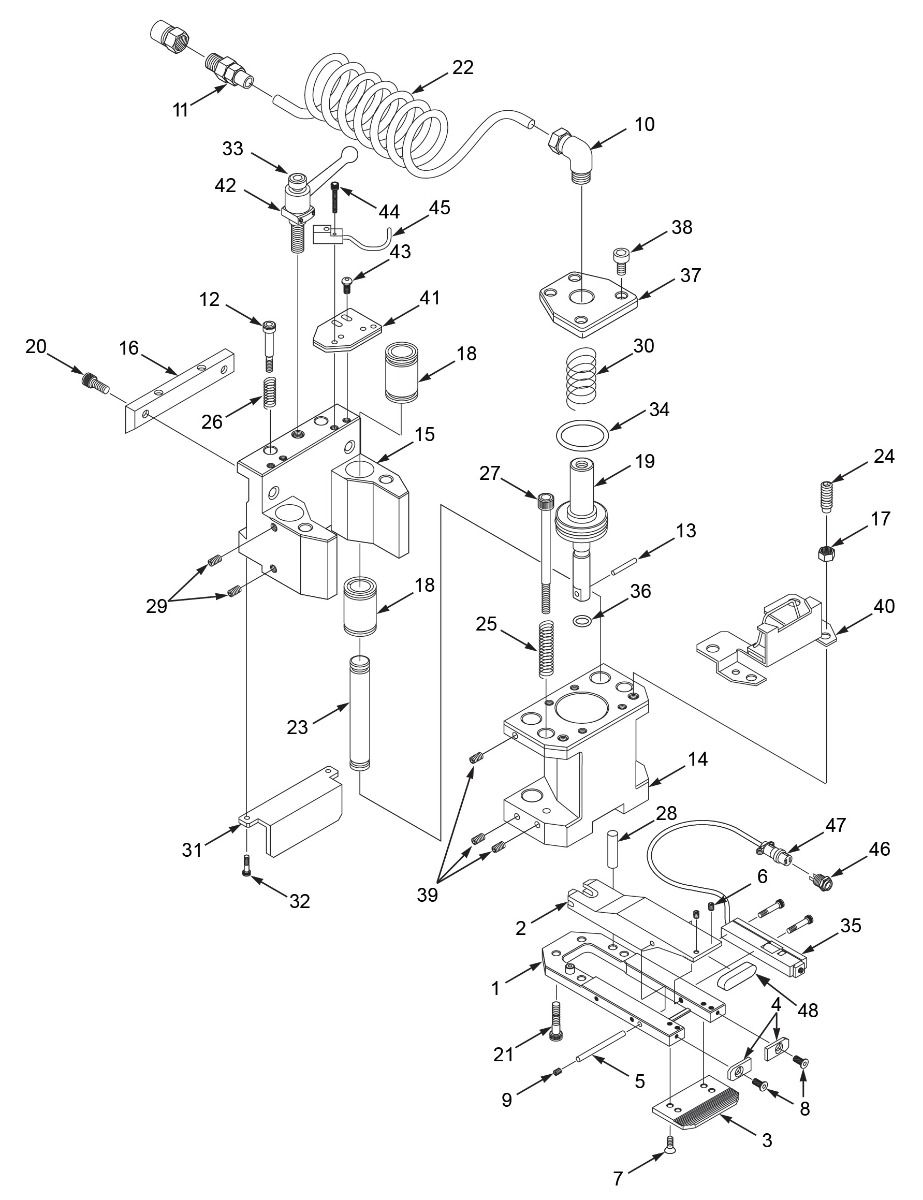

Illustration #Part #Product DescriptionQty
1A0300-B
Clamp Base EM Amada # 74335907 / 826270
$299.00


2A0414-CL
EM 10mm Clamper

Amada # 826277 / 74161549

$199.00


3A0500-CP
Clamp Plate EM Amada # 74569334 / 826272 / 74161576
$39.00


4A0601-SP
Stopper Plate

Amada # 74161353 / 816026

$9.50


5A0794
Straight Pin M6 X 60 Amada # 74571118 / 826285
$1.50


6A0892
Cup Point Set Screw M5x6 Amada # 74199098 / m5x6 / Set screw cone
$0.25


7A0821
Screw Clamp Plate EM pkg 10 Amada # 74569335 / 826035
$3.00


8A0832
Screw M4x10 Pkg of 10 for Stopper Plate

Amada # 40011066 / m4x10 / Screw M4 x 10 Pkg of 10SP

$3.00


9A0835
Set Screw M8 X 8 Each

Amada # 74722739 / p330590023

$0.40


10A4155
Male Elbow

Amada # 74169983

KQL06-02S Male Elbow

Tube Size: 6mm

1/4 inch PT

$5.75


11A4123
Male Connector

KQH06-02S Male Connector

Tube Size: 6mm

1/4 inch PT

$6.90


12A0887
Shoulder Bolt M8 X 25 p337135015 / Shoulder Bolt M8 x 25
$3.00


13A0882
Pin-Pneumatic Piston p337020028 / Pin for Pneumatic Piston
$1.00


14A0874
Clamp Body-Piston Side Pneumatic New Amada # 74335816 / Body Piston Side Pneumatic New
$499.00


16A0881
Dove Tail Plate

Amada # 74165903 / 816004

$44.00


17A0819
M10 Jam Nut 10427991 / P332000006
$3.00


18A0862
Linear Bearing Linear Bearing ST16B
$24.99


19A0620
Clamp Piston Amada # 74303513 / 826184b / Clamp Piston (Amada)
$375.00


20A0875
Bolt

Amada # 74165904 / 816005

$9.90


21A0895
Bolt M8 X 25 Amada # 36147516 / screw SHCS M8x25
$1.00


22A0876
Clamp Coil Tubing Clamp Coil Tubing
$15.00


23A0898
Rod 16mm x 120 mm

Rod 16mm x 120mm

$18.00


24A0820
M10 x 25 Dog End Set Screw 52332269 / P330570035
$3.00


25A0877
Hanging Spring

Amada # 74390105 / 826218

$5.00


26A0888
Spring Amada # 74165905 / 816006
$3.00


27A0884
Socket Cap Screw Bolt M6 X 110

Amada # 90106110 / M 6 X 110

$1.00


28A0966
Dowel Pin Dowel Pin M10 X 24
$3.00


29A0825
Cone Point Set Screw M4 X 6 Cone Point Set Screw
$0.25


30A0846
Cylinder Spring Amada # 74161330 / 806005
$19.00


31A0816
EM Sensor Dog Amada # 74812178 / 3809552
$39.00


32A0894
Flat Socket Head Cap Screw M4 X 10 Amada # 40011066 / Screw M4X 10
$1.00


33A0812
Clamp Lever (Steel) 12MM kr12x20 / Clamp Lever (Steel) 12MM 1
Amada # 806075
$29.00


34A9234
O-Ring P-50A

O-Ring P-50A

$1.50


35A0854
Sheet Sensor EM Amada # 74161243 / 7420920b / 74898008 / 3830190
$329.00


36A9220
O-Ring P-12

O-Ring P-12

$0.75


37A0878
Cylinder Cap Amada # 74303522 / 826188
$150.00


38A0849
Socket Cap Screw-M6 x 12 m6x12 / Amada # 36147526
$0.30


39A0889
Set Screw M6 X 6-10Pcs Set Screw M6 X 6
$3.00


40A0817
EM Cable Bracket Amada # 74419245 / 6873680
$89.00


41A0818
EM Sensor Bracket Amada # 74419245 / 6826888
$22.50


42A0814
Dog EM Handle Amada # 74575238 / 6826267
$59.00


43A0822
M6 x 10 Button Head Screw Amada # 43130517 / m6x10
$0.25


44A0807
M3 x 14 cap screw M3 x 14 cap screw
$0.20


45A6505
Clamp Position Switch Amada # 31177273 / FL2R-4J6HD
$76.00


46A0863
Sheet Sensor Plug EM male Amada # 74569255
$35.00


47A0864
Sheet Sensor Plug EM Female Amada # 74569254 / Plt-162-p
$35.00

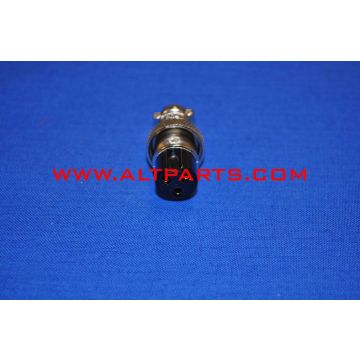

 A0946
PLT-163-P female plug

PLT-163-P female plug

$15.00


 A0811
Clamp Lever (Steel) 10MM Amada # 74161342 / 806075
$29.00


 A0841
Shims .003 - Pkg of 10

Shims .003 - Pkg of 10

$16.00


 A0879
Clamp Body-Dove Tail Side New Amada # 74335806 / 826181a
$499.00

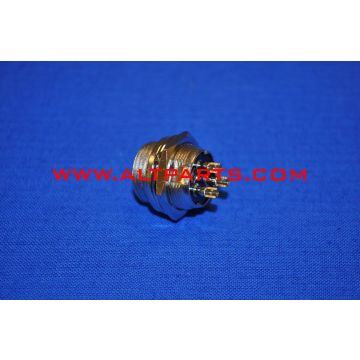

 A0945
PLT-163-R male plug

PLT-163-R male plug

$15.00

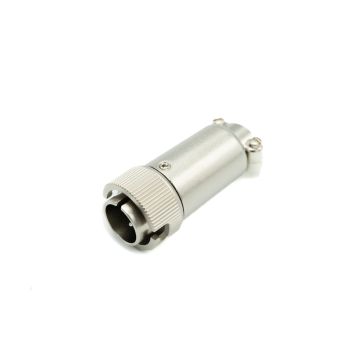

 A0867
Standard Circular Connector Plug Amada # 74400041
$32.00


 A0840
Shims .010 - Pkg of 10.

Shims .010 - Pkg of 10

$16.00


 A0842
Shims .005 - Pkg of 10

Shims .005 - Pkg of 10

$16.00
