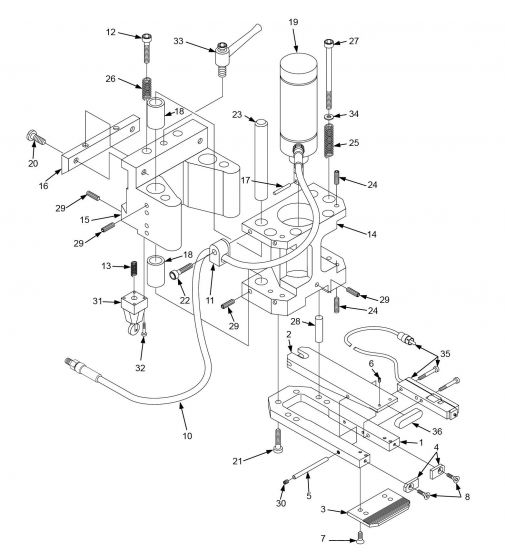

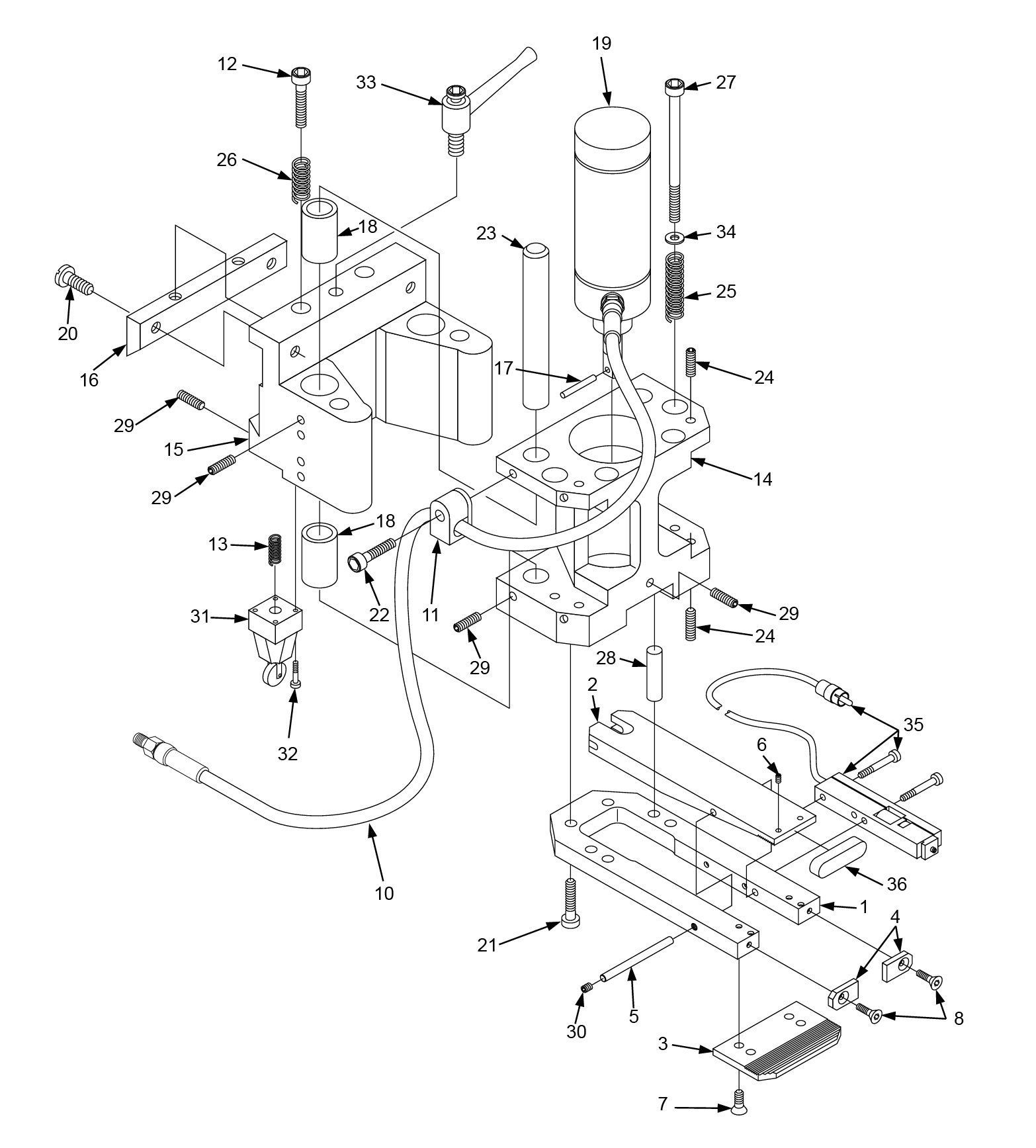

Replacement Parts For A0107-CAA

Replacement Parts For A0107-CAA

Double click on above image to view full picture

Zoom Out
Zoom In

More Views - Enlarge Photos

3 Steps to ordering parts

  • 1. Confirm you have chosen the correct model number.
  • 2. Browse the available parts below.
  • 3. Choose quantity, finish if needed and add to cart.
QtyProduct DescriptionIllustration #Part #


Clamp Base Assembly-New Style Hydraulic Clamp Base Assembly-New Style Hydraulic Amada # 74161545 / 826193.94 / 816025B.26
$289.00
A0207-CBA


Clamp Base - Coma New Style Hydraulic Clamp Base - Coma New Style Hydraulic Amada # 74525323 / 826193
$155.00
A0307-B


Clamper - Coma New Style Hydraulic Clamper - Coma New Style Hydraulic Amada # 74315825 / 826194
$99.00
A0407-CL


Clamp Plate Clamp Plate

Amada # 74161354 / 816025

$24.50
A0501-CP


Stopper Plate Stopper Plate

Amada # 74161353 / 816026

$9.50
A0601-SP


Straight Pin M8 X 60 Straight Pin M8 X 60 Amada # 74198999
$1.50
A0796


Clamp Lever (Steel) 12MM Clamp Lever (Steel) 12MM kr12x20 / Clamp Lever (Steel) 12MM 1
Amada # 806075
$29.00
33 A0812


Set Screw M5x6 Pkg of 10 (For Clamper Tip) Set Screw M5x6 Pkg of 10 (For Clamper Tip)

Set Screw cup M5 X 6 Pkg of 10

$3.00
A0830


Screw M5x12 Pkg of 10 for Clamp Plate Screw M5x12 Pkg of 10 for Clamp Plate

Screw M5x12 Pkg 10 CP

$3.00
A0831


Screw M6 X 8  Each Screw M6 X 8 Each p330570059 / Set Screw M6 x 8
$0.50
24 A0831b


Screw M6 X 25 Pkg of 10 Screw M6 X 25 Pkg of 10 Screw SHCS M6 X 25 pkg 10
$1.90
22 A0834a


Set Screw M8 X 8 Each Set Screw M8 X 8 Each

Amada # 74722739 / p330590023

$0.40
 A0835


Set Screw M10 X 12  Each Set Screw M10 X 12 Each Amada # 79999115 / m10x12
$1.00
A0836


Urethane Boot - For Clamper Tip Urethane Boot - For Clamper Tip Urethne Boot - For Clmper Tp 1
$25.00
36 A0850


Sheet Sensor (For Auto Loader) Sheet Sensor (For Auto Loader)

Amada # 74161252 / 8635270D

$165.00
35 A0855A


Linear Bearing Linear Bearing

Linear Bearing 101824

$28.99
18 A0869


Head  NOTE: Include 4  M4 x 20  Bolts Head NOTE: Include 4 M4 x 20 Bolts

6wph200-1 / Amada # 74163416

$41.00
31 A0871


Clamp Body-Piston Side Hydraulic Clamp Body-Piston Side Hydraulic Clamp Body-Piston Side-Hydraulic
$499.00
14 A0872a


Hydraulic Cylinder Hydraulic Cylinder

Hydraulic Cylinder Assembly

$279.00
19 A0873A


Bolt Bolt

Amada # 74165904 / 816005

$9.90
20 A0875


Dove Tail Plate Dove Tail Plate

Amada # 74165903 / 816004

$44.00
16 A0881


Ground Rod 5/8 x 4.750"" Ground Rod 5/8 x 4.750""

Ground Rod 5/8 x 4.750""

$12.00
23 A0883


Socket Cap Screw Bolt M6 X 110 Socket Cap Screw Bolt M6 X 110

Amada # 90106110 / M 6 X 110

$1.00
27 A0884


Washer-10 Pcs Washer-10 Pcs Washer bags of 10
$3.00
34 A0885


Spring Spring Spring 3"
$3.00
25 A0886


Shoulder Bolt M8 X 25 Shoulder Bolt M8 X 25 p337135015 / Shoulder Bolt M8 x 25
$3.00
12 A0887


Spring Spring Amada # 74165905 / 816006
$3.00
26 A0888


Set Screw M6 X 6-10Pcs Set Screw M6 X 6-10Pcs Set Screw M6 X 6
$3.00
29 A0889


Soc Cap Bolt M4 X 20 PKG OF 10 Soc Cap Bolt M4 X 20 PKG OF 10 Soc Cap Bolt M4 X 20 PKG OF 10
$3.00
32 A0890


Spring Spring Spring
$3.00
13 A0891


Cup Point Set Screw M5x6 Cup Point Set Screw M5x6 Amada # 74199098 / m5x6 / Set screw cone
$0.25
 A0892


Flat Socket Cap Screw M5 X 12 Flat Socket Cap Screw M5 X 12

Amada # 74388640 / m5x12 / Cap screw

$1.00
A0893


Flat Socket Head Cap Screw M4 X 10 Flat Socket Head Cap Screw M4 X 10 Amada # 40011066 / Screw M4X 10
$1.00
 A0894


Bolt  M8 X 25 Bolt M8 X 25 Amada # 36147516 / screw SHCS M8x25
$1.00
21 A0895


Hose Clamp Holder Hose Clamp Holder Hose Clamp Holder
$3.00
11 A0896


Socket Cap Screw Bolt M4 X 20 Socket Cap Screw Bolt M4 X 20 Amada # 90104020 / m4x20
$0.30
 A0935


Socket Head Cap Screw M6 x 30 Socket Head Cap Screw M6 x 30 Screw SHCS M6 X 30
$0.25
 A0944


Dowel Pin Dowel Pin Dowel Pin M10 X 24
$3.00
 A0966


Hydraulic Hose 1/4 X 1/8 Hydraulic Hose 1/4 X 1/8 Amada # 74161328 / 827577
$43.00
10 A8227


O-Ring 12.42 x 1.78 O-Ring 12.42 x 1.78 O-Ring 12.42 x 1.78
$1.00
 A9202


O-Ring 32.92 x 3.53 O-Ring 32.92 x 3.53 O-Ring 32.92 x 3.53
$1.00
 A9203


U-Cup 1.188 x 1.5 x .156 U-Cup 1.188 x 1.5 x .156

U-Cup-1.188 x 1.5 x .156

$8.50
 A9659


U-Cup-.750 x 1.0 .125 U-Cup-.750 x 1.0 .125

U-Cup-.750 x 1.0 x .125

$8.50
 A9662
