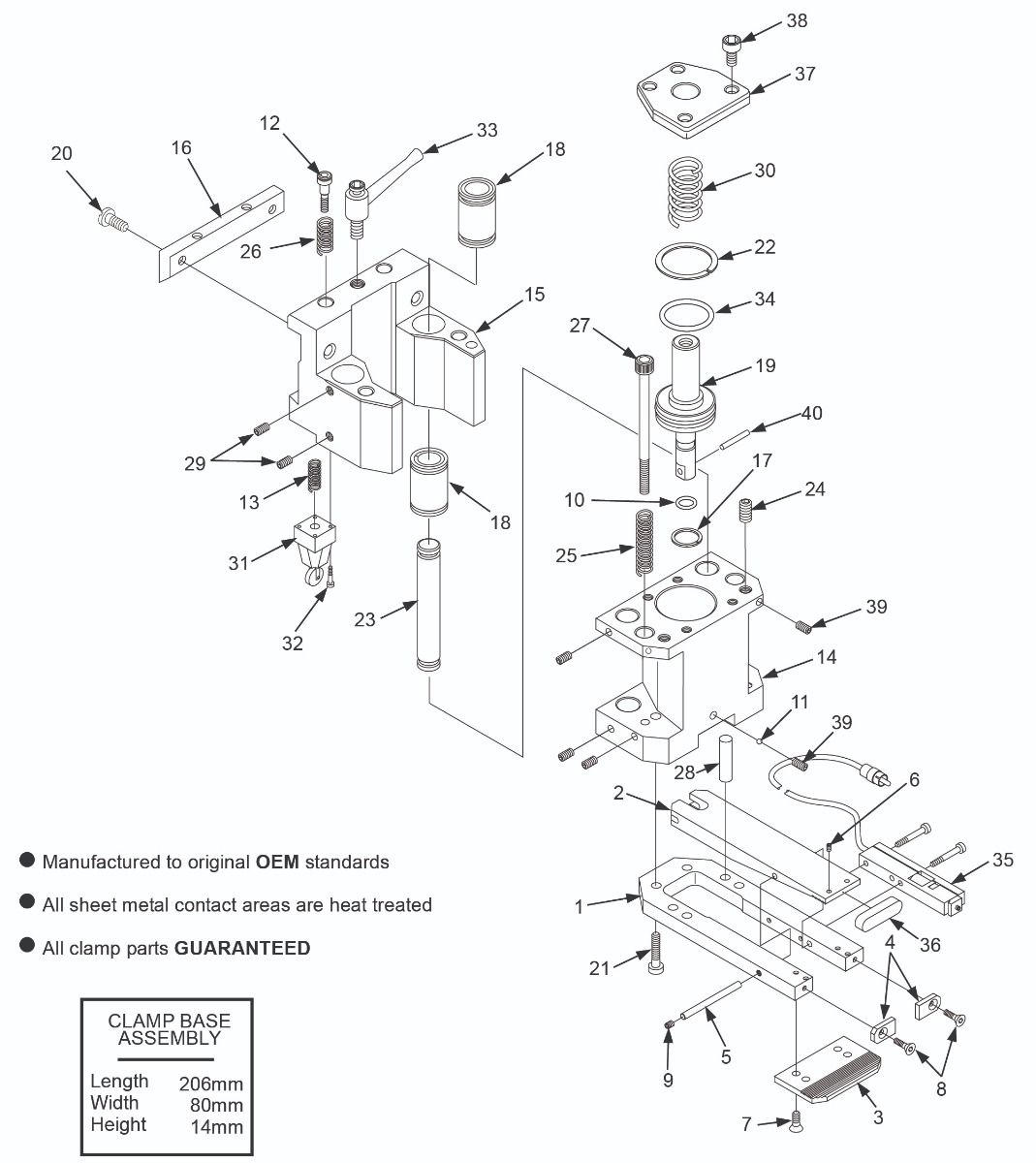

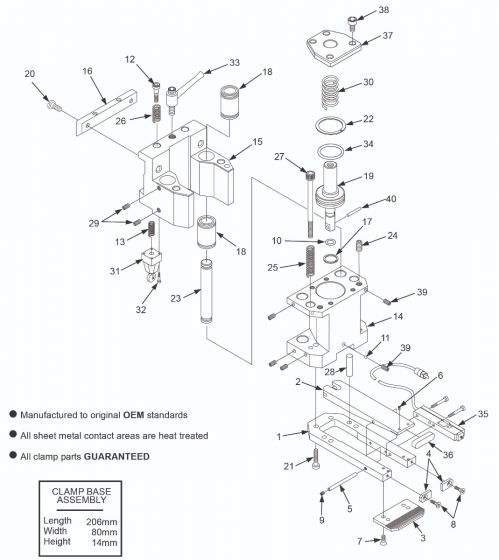

Replacement Parts For A0107-INT

Replacement Parts For A0107-INT

Double click on above image to view full picture

Zoom Out
Zoom In

More Views - Enlarge Photos

3 Steps to ordering parts

  • 1. Confirm you have chosen the correct model number.
  • 2. Browse the available parts below.
  • 3. Choose quantity, finish if needed and add to cart.
QtyProduct DescriptionIllustration #Part #


Clamp Lever (Steel) 10MM Clamp Lever (Steel) 10MM Amada # 74161342 / 806075
$29.00
 A0811


Cup Point Set Screw M5x6 Cup Point Set Screw M5x6 Amada # 74199098 / m5x6 / Set screw cone
$0.25
 A0892


Flat Socket Head Cap Screw M4 X 10 Flat Socket Head Cap Screw M4 X 10 Amada # 40011066 / Screw M4X 10
$1.00
 A0894


Socket Cap Screw Bolt M4 X 20 Socket Cap Screw Bolt M4 X 20 Amada # 90104020 / m4x20
$0.30
 A0935


Flat Socket Cap Screw M5 X 12 Flat Socket Cap Screw M5 X 12

Amada # 74388640 / m5x12 / Cap screw

$1.00
 A0893


Clamp Base - Coma New Style Hydraulic Clamp Base - Coma New Style Hydraulic Amada # 74525323 / 826193
$155.00
A0307-B


Clamp Base Assembly-New Style Hydraulic Clamp Base Assembly-New Style Hydraulic Amada # 74161545 / 826193.94 / 816025B.26
$289.00
A0207-CBA


Clamper - Coma New Style Hydraulic Clamper - Coma New Style Hydraulic Amada # 74315825 / 826194
$99.00
A0407-CL


Clamp Plate Clamp Plate

Amada # 74161354 / 816025

$24.50
A0501-CP


Stopper Plate Stopper Plate

Amada # 74161353 / 816026

$9.50
A0601-SP


Straight Pin M8 X 60 Straight Pin M8 X 60 Amada # 74198999
$1.50
A0796


Set Screw M5x6 Pkg of 10 (For Clamper Tip) Set Screw M5x6 Pkg of 10 (For Clamper Tip)

Set Screw cup M5 X 6 Pkg of 10

$3.00
A0830


Screw M5x12 Pkg of 10 for Clamp Plate Screw M5x12 Pkg of 10 for Clamp Plate

Screw M5x12 Pkg 10 CP

$3.00
A0831


Screw M4x10 Pkg of 10 for Stopper Plate Screw M4x10 Pkg of 10 for Stopper Plate

Amada # 40011066 / m4x10 / Screw M4 x 10 Pkg of 10SP

$3.00
A0832


Set Screw M10 X 12  Each Set Screw M10 X 12 Each Amada # 79999115 / m10x12
$1.00
A0836


O-Ring P-22 O-Ring P-22 O-Ring P-22
$0.99
10 A9227


3/16 Steel ball 3/16 Steel ball Amada # 74316027
$2.00
11 A0865


Shoulder Bolt M8 X 25 Shoulder Bolt M8 X 25 p337135015 / Shoulder Bolt M8 x 25
$3.00
12 A0887


Spring Spring Spring
$3.00
13 A0891


Clamp Body-Piston Side Hydraulic Clamp Body-Piston Side Hydraulic Clamp Body-Piston Side-Hydraulic
$499.00
14 A0872HN


Clamp Body-Dove Tail New Hydraulic Clamp Body-Dove Tail New Hydraulic Clamp Body-Dove Tail new hyd.
$499.00
15 A0879HN


Dove Tail Plate Dove Tail Plate

Amada # 74165903 / 816004

$44.00
16 A0881


Back Up Ring Back Up Ring Amada # 74717102
$4.00
17 A8342


Linear Bearing Linear Bearing Linear Bearing ST16B
$24.99
18 A0862


Clamp Piston Clamp Piston Amada # 74303513 / 826184b
$375.00
19 A0620HN


Bolt Bolt

Amada # 74165904 / 816005

$9.90
20 A0875


Bolt  M8 X 25 Bolt M8 X 25 Amada # 36147516 / screw SHCS M8x25
$1.00
21 A0895


Back Up Ring Back Up Ring Amada # 74717104
$4.00
22 A8341


Rod 16mm x 120 mm Rod 16mm x 120 mm

Rod 16mm x 120mm

$18.00
23 A0898


Set Screw Dog End M10 x 12 Set Screw Dog End M10 x 12 Amada # 74305509 / M10x14 / Set Screw (dog end)
$0.45
24 A0848


Hanging Spring Hanging Spring

Amada # 74390105 / 826218

$5.00
25 A0877


Spring Spring Amada # 74165905 / 816006
$3.00
26 A0888


Screw SHCS M6  X 100MM Screw SHCS M6 X 100MM Amada # 90106100 / M6 X 100
$1.00
27 A0902


Dowel Pin Dowel Pin Dowel Pin M10 X 24
$3.00
28 A0966


Cone Point Set Screw Cone Point Set Screw M4 X 6 Cone Point Set Screw
$0.25
29 A0825


Cylinder Spring(hydraulic) Cylinder Spring(hydraulic) Amada # 74315813 / Cylinder Spring (Hydraulic)
$13.00
30 A0846HN


Head  NOTE: Include 4  M4 x 20  Bolts Head NOTE: Include 4 M4 x 20 Bolts

6wph200-1 / Amada # 74163416

$41.00
31 A0871


Set Screw M8 X 8 Each Set Screw M8 X 8 Each

Amada # 74722739 / p330590023

$0.40
32 A0835


Clamp Lever (Steel) 12MM Clamp Lever (Steel) 12MM kr12x20 / Clamp Lever (Steel) 12MM 1
Amada # 806075
$29.00
33 A0812


O-Ring P-32 O-Ring P-32

O-Ring P-32

$0.99
34 A9230


Sheet Sensor (For Auto Loader) Sheet Sensor (For Auto Loader)

Amada # 74161252 / 8635270D

$165.00
35 A0855A


Urethane Boot - For Clamper Tip Urethane Boot - For Clamper Tip Urethne Boot - For Clmper Tp 1
$25.00
36 A0850


Cylinder Cap Cylinder Cap Cylinder Cap (New Hyd.)
$150.00
37 A0878HN


Socket Cap Screw-M6 x 12 Socket Cap Screw-M6 x 12 m6x12 / Amada # 36147526
$0.30
38 A0849


Set Screw M6 X 6-10Pcs Set Screw M6 X 6-10Pcs Set Screw M6 X 6
$3.00
39 A0889
