Replacement Parts For A8845a

Replacement Parts For A8845a

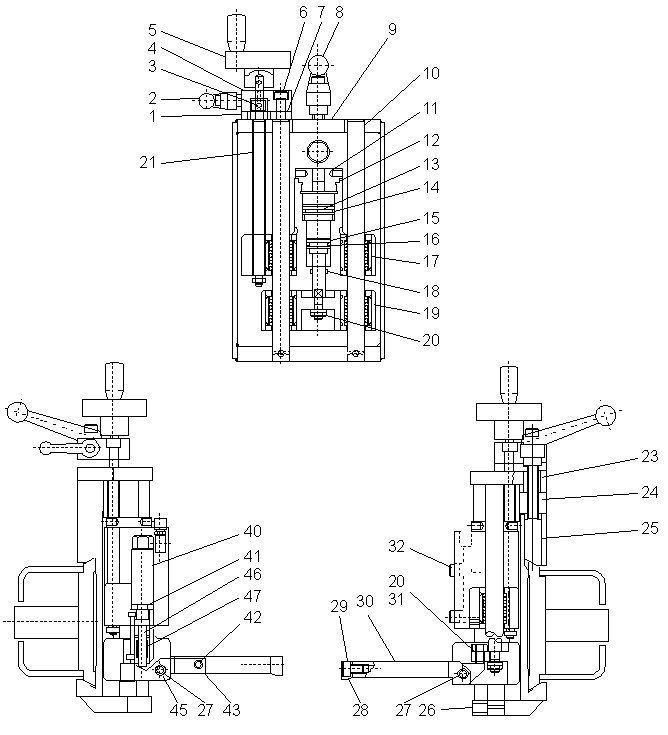

Double click on above image to view full picture

Zoom Out
Zoom In

More Views - Enlarge Photos

3 Steps to ordering parts

  • 1. Confirm you have chosen the correct model number.
  • 2. Browse the available parts below.
  • 3. Choose quantity, finish if needed and add to cart.
QtyProduct DescriptionIllustration #Part #


Spherical Support Bearing Spherical Support Bearing

Amada # 36003691 / NB-6

$34.90
A8846YY


Clamp Lever 6MM Clamp Lever 6MM kr-6x20 / Clamp Lever 6MM
$26.00
A0809


Collar Collar

4128801A / Collar Feed Screw

$5.90
A8846zz1


Work Stopper Assembly-Bearing Retainer Work Stopper Assembly-Bearing Retainer Amada # 36181532 / 4128798A
$89.00
A8846gg


Handwheel & Handle Handwheel & Handle Amada # 36004353 / 4128802
$59.00
A8835A


Screw M6 X 25 Pkg of 10 Screw M6 X 25 Pkg of 10 Screw SHCS M6 X 25 pkg 10
$1.90
A0834a


Work Stopper Assembly-Bearing Case Work Stopper Assembly-Bearing Case Amada # 36181533 / 4128799
$24.00
A8846ff


Clamp Lever 8MM Clamp Lever 8MM kr-8x40 / Clamp Lever 8MM
$26.00
A0810


Work Stopper Assembly-Body Work Stopper Assembly-Body

4128797D / Work Stopper Assembly Body

$189.00
A8846aa


Guide Rod Guide Rod Amada # 36181549 / 7950004
$22.00
10 A8846hh


Cap Cap Amada # 36181556 / 4128809
$29.00
11 A8846mm


O-Ring S-28 O-Ring S-28

O-Ring S-28

$0.99
12 A9228a


Piston Piston Amada # 36181554 / 4128808
$49.00
13 A8846nn


O-Ring P-21 O-Ring P-21

O-Ring P-21

$0.75
14 A9226


Piston Piston Amada # 36181553 / 4128807
$49.00
15 A8846oo


O-Ring P-14 O-Ring P-14

O-Ring P-14

$0.75
16 A9221


Linear Bearing Linear Bearing LM13UU / Linear Bearing
$19.90
17 A8846pp


O-Ring P-10 O-Ring P-10

O-Ring P-10

$0.75
18 A9209


Work Stopper Assembly-Holder Work Stopper Assembly-Holder 4128810C / Work Stopper Holder
$159.00
19 A8846bb


Hex Nut Hex Nut

M6 TYPE 3 / Hex Nut

$0.07
20 A8846xx


Feedscrew Feedscrew

4128800

$19.00
21 A8841


Collar Collar Amada # 36181541 / 4128805
$2.90
23 A8846ll


Lock Nut Lock Nut Amada # 36181539 / 4128803
$32.90
24 A8846kk


Lock Bar Lock Bar Amada # 36181540 / 4128804A
$9.90
25 A8846jj


Screw M6 X 10  Pkg of 10 Screw M6 X 10 Pkg of 10 Set Screw cup M6 X 10 Pkg 10
$1.70
26 A0831c


Hinge Pin Hinge Pin Amada # 36181515 / 4129243
$6.90
27 A8846ii


Finger Stop Pads Finger Stop Pads

Amada # 4128812

$32.00
28 A8827


Socket Cap Screw-M6 x 10 Pkg of 10 Socket Cap Screw-M6 x 10 Pkg of 10 Screw SHCS M6 x 10 Pkg 10
$1.80
29 A0839c


Work Stopper Assembly-Main Flip Arm Work Stopper Assembly-Main Flip Arm Amada # 36172601 / 4128811 / Main Flip Arm
$99.00
30 A8846dd


SET Screw M6 X 16 10Pcs SET Screw M6 X 16 10Pcs Flat Set Screw M6 X 16 10Pcs.
$1.90
31 A0831d


Plug Plug

1/8" / Plug 44605K231

$0.99
32 A8846ww


Cylinder-Flip Up Actuator Cylinder-Flip Up Actuator Amada # 36181545 / 795002
$95.00
40 A4087


Dowel Pin Dowel Pin

6 X 36 / Dowel Pin

$0.49
42 A8846rr


Work Stopper Assembly-Flip up Lever Work Stopper Assembly-Flip up Lever 4128819B / Flip Arm Lever
$29.00
43 A8846ee


Snap Ring 8M Snap Ring 8M

Amada # 57131020 / STW-8

$0.19
45 A8846ss


Linear Ball Bearing Linear Ball Bearing

Amada # 36181521 / LM6UU

$19.90
46 A8846qq


Flip up Rod Flip up Rod

Flip up Rod

$34.00
47 A8846zz
