Replacement Parts For A0106-CA

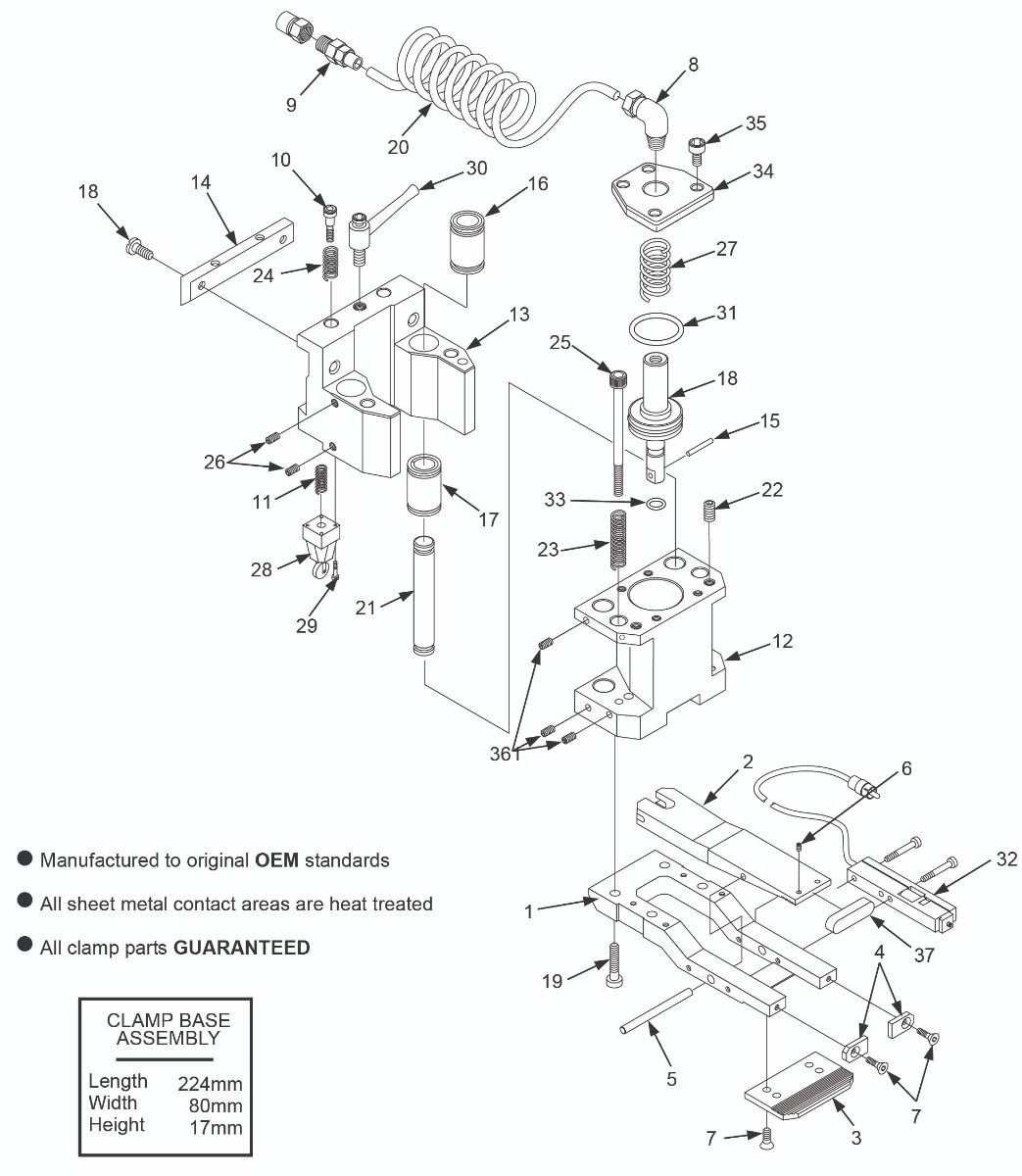

Replacement Parts For A0106-CA

Double click on above image to view full picture

Zoom Out
Zoom In

More Views - Enlarge Photos

3 Steps to ordering parts

  • 1. Confirm you have chosen the correct model number.
  • 2. Browse the available parts below.
  • 3. Choose quantity, finish if needed and add to cart.
QtyProduct DescriptionIllustration #Part #


Clamp Base Assembly-Thick-Original Pneumatic Clamp Base Assembly-Thick-Original Pneumatic Amada # 74161318 / 826031 (thick)
$319.00
A0206-CBA


Clamp Base Original Style-Coma Vela Thick Pneumatic Clamp Base Original Style-Coma Vela Thick Pneumatic Amada # 74198438 / 826031c
$199.00
A0306-B


Clamper Original Style-Coma Vela Thick Pneumatic Clamper Original Style-Coma Vela Thick Pneumatic Amada # 74161386 / 826032a
$89.00
A0406-CL


Clamp Plate Lila Coma Vela Clamp Plate Lila Coma Vela

Amada # 74161320 / 826076a / 806018

$27.50
A0504-CP


Stopper Plate Lila Coma Vela Stopper Plate Lila Coma Vela

Amada # 74161323 / 826092a

$15.00
A0603-SP


Straight Pin M6 x 80 Straight Pin M6 x 80 Amada # 73157407 / m6x80 /
$1.50
A0795


Clamp Lever (Steel) 10MM Clamp Lever (Steel) 10MM Amada # 74161342 / 806075
$29.00
 A0811


Clamp Lever (Steel) 12MM Clamp Lever (Steel) 12MM kr12x20 / Clamp Lever (Steel) 12MM 1
Amada # 806075
$29.00
33 A0812


Set Screw M5x6 Pkg of 10 (For Clamper Tip) Set Screw M5x6 Pkg of 10 (For Clamper Tip)

Set Screw cup M5 X 6 Pkg of 10

$3.00
A0830


Screw M5x12 Pkg of 10 for Clamp Plate Screw M5x12 Pkg of 10 for Clamp Plate

Screw M5x12 Pkg 10 CP

$3.00
A0831


Screw M6 X 8  Each Screw M6 X 8 Each p330570059 / Set Screw M6 x 8
$0.50
24 A0831b


Set Screw M8 X 8 Each Set Screw M8 X 8 Each

Amada # 74722739 / p330590023

$0.40
30 A0835


Socket Cap Screw-8 x 16 Pkg of 10 Socket Cap Screw-8 x 16 Pkg of 10 Socket Cap Screw-8 x 16 PACKAGE OF 10
$7.90
 A0839n


Urethane Boot - For Clamper Tip Urethane Boot - For Clamper Tip Urethne Boot - For Clmper Tp 1
$25.00
36 A0850


Sheet Sensor (For Auto Loader) Sheet Sensor (For Auto Loader)

Amada # 74161252 / 8635270D

$165.00
35 A0855A


Linear Bearing Linear Bearing

Linear Bearing 101824

$28.99
18 A0869


Air Cylinder Air Cylinder

Air Cylinder (hole position ?)

$149.00
19 A0870


Head  NOTE: Include 4  M4 x 20  Bolts Head NOTE: Include 4 M4 x 20 Bolts

6wph200-1 / Amada # 74163416

$41.00
31 A0871


Clamp Body-Piston Side Joggle Clamp Body-Piston Side Joggle Clamp Body-Piston Side-Joggle
$499.00
14 A0872b


Bolt Bolt

Amada # 74165904 / 816005

$9.90
20 A0875


Clamp Coil Tubing Clamp Coil Tubing Clamp Coil Tubing
$15.00
22 A0876


Dove Tail Plate Dove Tail Plate

Amada # 74165903 / 816004

$44.00
16 A0881


Pin-Pneumatic Piston Pin-Pneumatic Piston p337020028 / Pin for Pneumatic Piston
$1.00
17 A0882


Ground Rod 5/8 x 4.750"" Ground Rod 5/8 x 4.750""

Ground Rod 5/8 x 4.750""

$12.00
23 A0883


Socket Cap Screw Bolt M6 X 110 Socket Cap Screw Bolt M6 X 110

Amada # 90106110 / M 6 X 110

$1.00
27 A0884


Washer-10 Pcs Washer-10 Pcs Washer bags of 10
$3.00
34 A0885


Spring Spring Spring 3"
$3.00
25 A0886


Shoulder Bolt M8 X 25 Shoulder Bolt M8 X 25 p337135015 / Shoulder Bolt M8 x 25
$3.00
12 A0887


Spring Spring Amada # 74165905 / 816006
$3.00
26 A0888


Set Screw M6 X 6-10Pcs Set Screw M6 X 6-10Pcs Set Screw M6 X 6
$3.00
29 A0889


Soc Cap Bolt M4 X 20 PKG OF 10 Soc Cap Bolt M4 X 20 PKG OF 10 Soc Cap Bolt M4 X 20 PKG OF 10
$3.00
32 A0890


Spring Spring Spring
$3.00
13 A0891


Cup Point Set Screw M5x6 Cup Point Set Screw M5x6 Amada # 74199098 / m5x6 / Set screw cone
$0.25
 A0892


Flat Socket Cap Screw M5 X 12 Flat Socket Cap Screw M5 X 12

Amada # 74388640 / m5x12 / Cap screw

$1.00
 A0893


Bolt  M8 X 25 Bolt M8 X 25 Amada # 36147516 / screw SHCS M8x25
$1.00
21 A0895


Socket Cap Screw Bolt M4 X 20 Socket Cap Screw Bolt M4 X 20 Amada # 90104020 / m4x20
$0.30
 A0935


Dowel Pin Dowel Pin Dowel Pin M10 X 24
$3.00
 A0966


Male Connector Male Connector

KQH06-02S Male Connector

Tube Size: 6mm

1/4 inch PT

$6.90
11 A4123


Male Elbow Male Elbow

Amada # 74169983

KQL06-02S Male Elbow

Tube Size: 6mm

1/4 inch PT

$5.75
10 A4155
