HPRXD 130®, 260®, 400XD® - For Mild Steel Applications

HPRXD 130®, 260®, 400XD® - For Mild Steel Applications
HPRXD 130®, 260®, 400XD® - For Mild Steel Applications

3 Steps to ordering parts

  • 1.Confirm you have chosen the correct model number.
  • 2.Browse the available parts below.
  • 3.Choose quantity, finish if needed and add to cart.
Phone Order Only! Please Call:631-345-9500
Order Replacement Parts

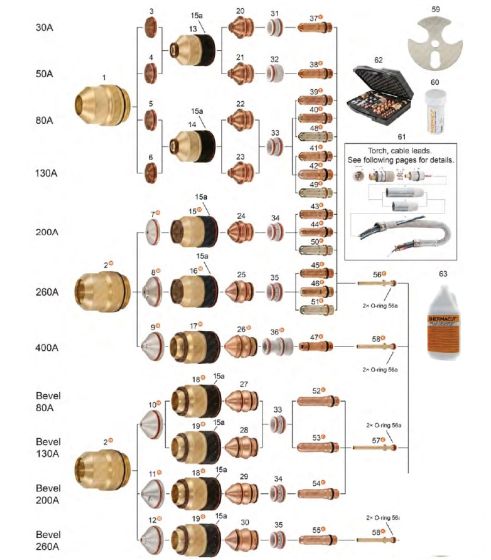

Illustration #Part #Product Description
1HT11271
Shield Cap, 30-130A MS

220747

2HT11270
Shield Cap

220637-UR

3HT10878
Shield, 30A, MS

220194

4HT10882
Shield 50A, MS

220555

5HT9838
Shield 80A, MS

220189

6HT9839
Shield, 130A, MS

220183

7HT11276
Shield Cap, 200A

220761-UR

8HT11277
Shield, 260A

220764-UR

9HT12272
Shield 400A

220636-UR

10HT11403
Shield, 130A, MS, Bevel

220742-UR

11HT11424
Shield 200A Bevel

220658-UR

12HT11402
Shield, 260A, MS, Bevel

220741-UR

13HT11272
Nozzle Retaining Cap 30/50A MS

220754

14HT11273
Nozzle Retaining Cap 80/130 MS

220756

15HT11274
Nozzle Retaining Cap, 200A

220757-UR

15aHT9995
O-ring (N-20194)

O-ring (N-20194)

16HT11275
Nozzle Retaining Cap, 260A

220760-UR

17HT12271
Nozzle Retaining Cap 400A

220635-UR

18HT11833
Nozzle Retaining Cap 80A Bevel

220845-UR

19HT11401
Noz Retaining Cap, 260A,MS, BV

220740-UR

20HT10936
Nozzle, 30A, MS

220193

21HT10940
Nozzle, 50A, MS

220554

22HT10935
Nozzle, 80A, MS

220188

23HT10934
Nozzle, 130A, MS

220182

24HT10937
Nozzle, 200A, M.S.

220354

25HT11318
Nozzle 260A MS

220439-US

26HT12270
Nozzle 400A

220632-UR

27HT11832
Nozzle, 80A, MS, Bevel

220806

28HT10941
Nozzle, 130A, MS Bevel

220646

29HT11425
Nozzle, 200A, MS, Bevel

220659

30HT10308
Nozzle, 260A, MS Bevel

220542-UR

31HT10297
Swirl Ring, 30-45A

220180

32HT10305
Swirl Ring, 50A, M.S.

220553

33HT10295
Swirl Ring, 80A-130A

220179

34HT10296
Swirl Ring 200A, Mild Steel

220353

35HT10271
Swirl Ring 260A, Mild Steel

220436

36HT12267
Swirl Ring 400A

220631-UR

37HT9894
Electrode,30A,MS (Pack of 5)

220192-UR

38HT10306
Electrode, 50A, M.S. (Pack of 5)

220552-UR

39HT9895
Electrode, 80A, MS (Pack of 5)

220187-UR

40HT12064
Electrode, Silver-PRO (Pack of 5)

220187-PRO

41HT9920
Electrode, 130A, M.S. (Pack of 5)

220181-UR

42HT11203
Electrode, SilverPro 130A (Pack of 5)

220181-PRO

43HT9969
Electrode, 200A, M.S. (Pack of 5)

220352-UR

44HT11200
Electrode, SilverPro 200A (Pack of 5)

220352-PRO

45HT9974
Electrode, 260A, M.S. (Pack of 5)

220435-UR

46HT11197
Electrode, SilverPro 260A (Pack of 5)

220435-PRO

47HT12269
Electrode 400A, Bevel (Pack of 5)

220629-UR

48HT9953
Electrode silverEX-80a

Electrode silverEX-80a


220187-ag

49HT9954
Electrode silverEX-130a

220181-ag

50HT9955
Electrode silverEX-200a

220352-ag

51HT9956
Electrode silverEX-260a

Electrode silverEX-260a


220435-ag

52HT11831
Electrode 80A Bevel (Pack of 5)

220802-UR

53HT10309
Electrode, 130A, MS Bevel (Pack of 5)

220649-UR

54HT11426
Electrode 200A Bevel (Pack of 5)

220662-UR

55HT10307
Electrode, 260A, MS Bevel (Pack of 5)

220541-UR

56HT9882
Cooling Tube

220340-UR

56aHT9963
o-ring (26009)

o-ring (26009)

57HT10472
Cooling Tube, 80-200A, Bevel

220700-UR

58HT10323
Cooling Tube, Bevel

220571-UR

59HT9952
Assembly Removal Tool

104119-UR

60HT0994
Lubricant/Grease 25ml

T-0994 / EX-0-805-001

61HT9957
Torch, Cable leads

Phone order only!

63HT9959
Coolant: Inhibited Proplene Glycol based (Pack of 4)

Coolant: Inhibited Proplene Glycol based


CFPG-1G

63HT995a
Ethylene Glycol based coolant

Ethylene Glycol based coolant


CF2-1G

HT10308a
Nozzle, 260A, Bevel

Nozzle, 260A, MS Bevel
