Phone Order Only! Please Call:631-345-9500

Order Replacement Parts

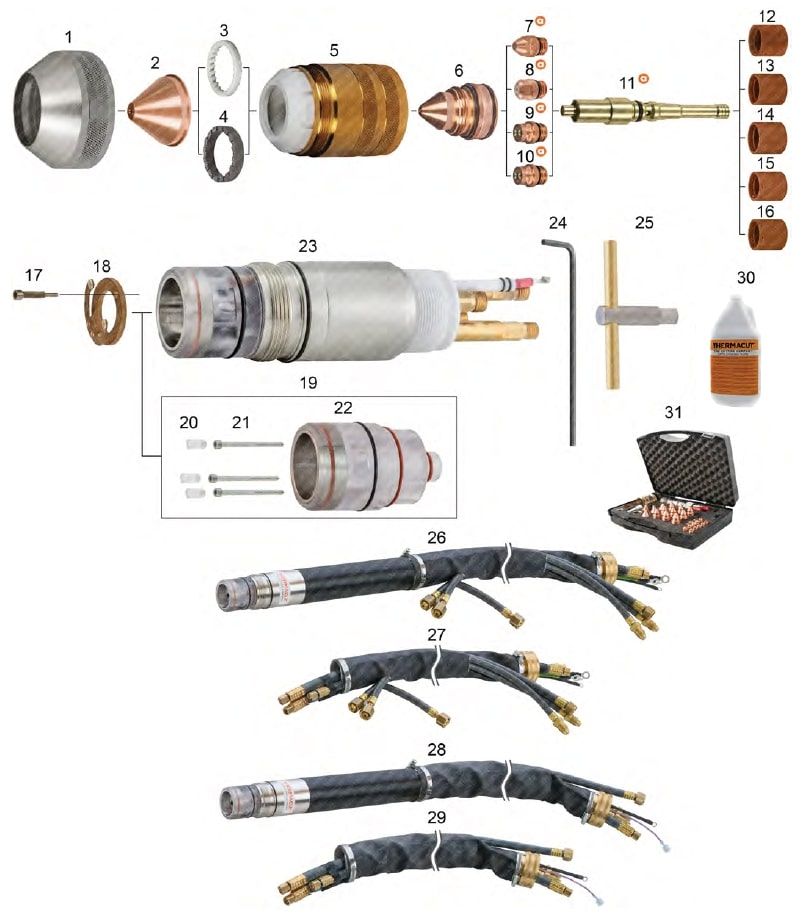

Illustration #

Part #

Product Description

1

HT10128

Shield, Retainer

37081

2

HT12231

558009425

2

HT10334

Shield Cap 6.6 mm

558006166

2

HT10333

Shield Cap 3.0 mm

558006130

2

HT10332

Shield Cap 4.1 mm

558006141

2

HT10463

Shield Cap 2.4 mm

558007624

2

HT10335

Shield Cap 9.9 mm

558006199

3

HT2269

Diffuser, 100-360A

21944

4

HT2268

21796

5

HT10129

Nozzle Retainer Cup

37082

6

HT12229

558009406

6

HT12230

558009410

6

HT10338

558006020

6

HT10339

558006023

6

HT10443

558006030

6

HT10292

558006041

6

HT10336

558006010

6

HT10970

Nozzle 1.8mm, 130A

558006018

6

HT10340

558006025

6

HT10337

558006014

6

HT10341

558006036

7

HT12228

Electrode 30-60A (Pack of 5)

0558009400-PRO

7

HT11910

Electrode, 600A N2/H35 (Pack of 5)

0558003928-UR

7

HT10439

Electrode, Low Current (Pack of 5)

0558005459 OEM

8

HT9967

Electrode 50-250a, Silver PRO (Pack of 5)

t-11303-pro

9

HT11290

Electrode, 100-450A, Silver Pr (Pack of 5)

0558003914-PRO

10

HT11994

Electrode, 100-450A, Silver Pr (Pack of 5)

0558012000-PRO

11

HT11319

Electrode Holder

0558003924-UR

13

HT4607

Gas Baffle,4 Hole x .032, CCW

558002534

14

HT4606

Gas Baffle, 4 Hole x.032

558002533

15

HT4636

Gas Baffle, 8 Hole x .047, CW

558001625

16

HT11119

Gas Baffle, 8 Hole x .047, CCW

558002530

17

HT11942

Screw, Contact Ring

37073

18

HT11863

Contact Ring w/Screw

558003858

23

HT9951

Torch Body, PT-36

558003804

24

HT20426

93750010

25

HT9920A

Electrode Holder Removal Tool

0558003918 OEM

27

HT9971

PT-36™ Cable Leads 1,3m

558007031

28

HT9972

PT-36™ Mach. torch with Leads 1,4m

558003849

30

HT9959

Coolant: Inhibited Proplene Glycol based (Pack of 4)

Coolant: Inhibited Proplene Glycol based

CFPG-1G

30

HT9959a

Ethylene Glycol based coolant (Pack of 4)

Ethylene Glycol based coolant

HT9934

Shield, Micro 2.0mm (Pack of 5)

0558009520 OEM

HT9935

Shield Retainer XR

0558009548 OEM

HT9936

Nozzle Retaining Cup

0558009550 OEM

HT9937

Shield XR 5.1mm (Pack of 5)

0558009551 OEM

HT9938

Nozzle XR 2.2mm (Pack of 5)

0558010722 OEM

HT9939

Shield XR 6.6mm (Pack of 5)

0558010766 OEM

HT9940

Nozzle XR 1.9mm (Pack of 5)

0558011619 OEM

HT9950

Nozzle XR 2.5mm (Pack of 5)

0558011625 OEM

HT9921

Nozzle XR 2.8mm (Pack of 5)

0558006028 OEM

HT9924

Nozzle Retaining Cup w/Wtr Inj

0558009300 OEM

HT9925

Electrode Holder Short

0558009304 OEM

HT9926

Nozzle water Inj 1.8mm (Pack of 5)

0558009318 OEM

HT9927

Nozzle water Inj 2.5mm (Pack of 5)

0558009325 OEM

HT9928

Nozzle water Inj 4.0mm (Pack of 5)

0558009340 OEM

HT9929

Nozzle water Inj 5.1mm (Pack of 5)

0558009351 OEM

HT9930

Nozzle water Inj 5.8mm (Pack of 5)

0558009358 OEM

HT9931

Shield Retain XR w/air curtain

0558009392 OEM

HT9932

Shield Ret Std Ins w/air curtn

0558009395 OEM

HT9922

Nozzle Retain Cup, Speedloader

0558006624 OEM

HT9923

Nozzle 0.8mm (Pack of 5)

0558006908 OEM

HT9933

Nozzle, Micro 1.1mm (Pack of 5)

0558009411 OEM

HT11208

O-Ring Lubricant/Grease 25ml

4470869
