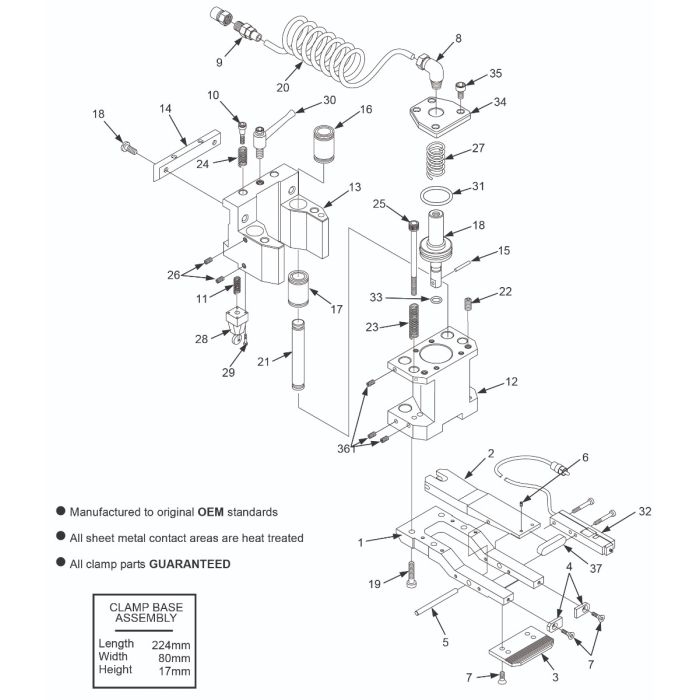

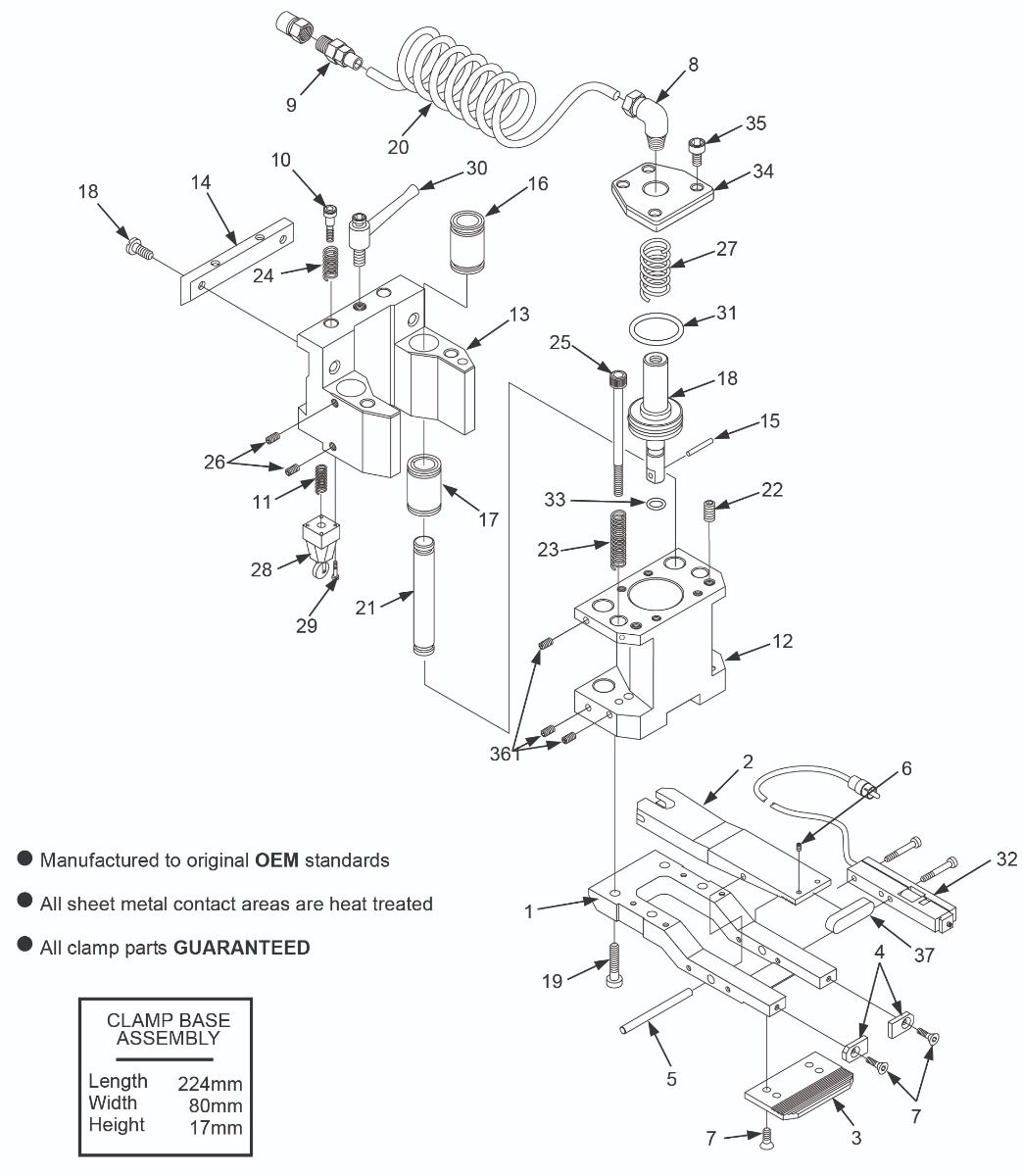

Replacement Parts For A0106-CA

Amada # 74161302 / 826030e

Amada # 74198438 / 826031c

Amada # 74161318 / 826031 (thick)

Amada # 74161386 / 826032a

Amada # 74161320 / 826076a / 806018

Amada # 74161323 / 826092a

Amada # 73157407 / m6x80 / 806019 / 74161351

Set Screw cup M5 X 6 Pkg of 10

Screw M5x12 Pkg 10 CP

Amada # 74169983

KQL06-02S Male Elbow

Tube Size: 6mm

1/4 inch PT

KQH06-02S Male Connector

Tube Size: 6mm

1/4 inch PT

p337135015 / Shoulder Bolt M8 x 25

Spring

Amada # 74335806 / 826181a

Amada # 74165903 / 816004

p337020028 / Pin for Pneumatic Piston

Linear Bearing ST16B

Clamp Piston (Joggle)

Amada # 74165904 / 816005

Socket Cap Screw-8 x 16 PACKAGE OF 10

Clamp Coil Tubing

Rod 16mm x 120mm

52332269 / P330570035

Amada # 74390105 / 826218

Amada # 74165905 / 816006

Amada # 90106100 / M6 X 100

Set Screw cup M4 X .7 x 6

Amada # 74161330 / 806005

6wph200-1 / Amada # 74163416

Soc Cap Bolt M4 X 20 PKG OF 10

kr12x20 / Clamp Lever Assembly - 12MM
Amada # 806075

O-Ring P-50A

Amada # 74161252 / 8635270D

O-Ring P-12

Socket Cap Screw-M6 x 12 PKG OF 10

Set Screw M6 X 6 PKG of 10

Urethne Boot - For Clmper Tp 1

Amada # 74162521 / 20SM 1/4

Amada # 74162522 / 20pf-1/4/ 20ph-1/4

Shims .010 - Pkg of 10

Shims .003 - Pkg of 10

Shims .005 - Pkg of 10
